Elsewedy Stranded Copper Electrical Wire Multi Size & Color
Buy genuine Elsewedy stranded copper electrical wire. Available in 1.5mm to 16mm diameters and multiple colors. 99.9% pure copper for peak safety and power.
SKU:
SWE
In Stock
1 Product Sold.
Additional Offers
- Categories: Electrical Tools
- Availability: In Stock
- Product Type: Variable

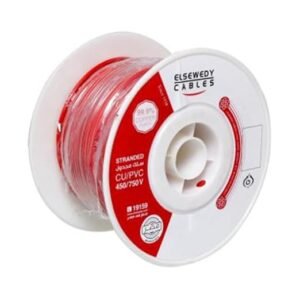

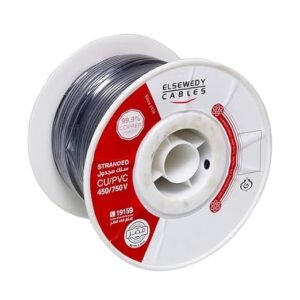

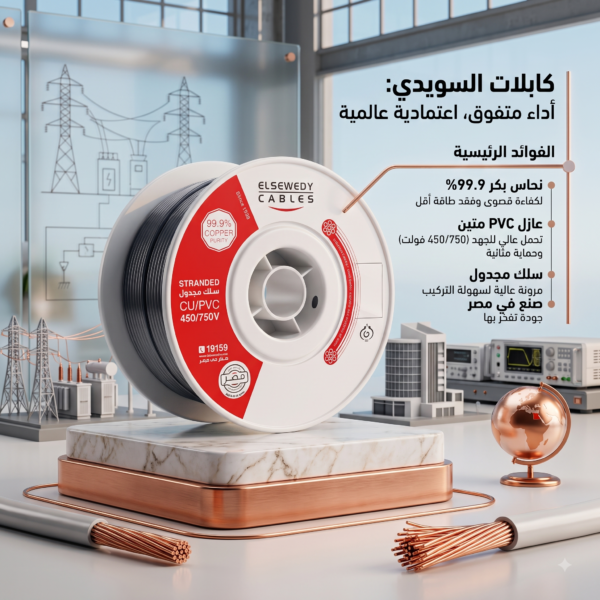

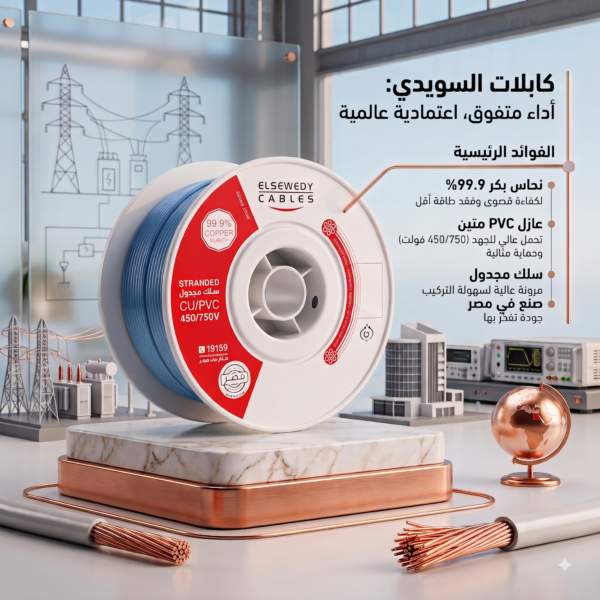

Elsewedy Stranded Copper Electrical Wire – Premium CU/PVC 450/750V Building Wire
Power your electrical projects with confidence using the authentic Elsewedy stranded copper electrical wire. In addition, it is manufactured with 99.9% pure electrolytic copper to ensure maximum conductivity and zero power loss. Therefore, it delivers industry-leading electrical safety for residential, commercial, and industrial installations.
Key Features and Manufacturing Standards
-
99.9% Pure Annealed Copper: Built with multi-strand electrolytic copper conductors. As a result, it reduces electrical resistance and prevents hazardous heat accumulation in walls.
-
Heavy-Duty PVC Insulation (450/750V): Wrapped in high-grade, flame-retardant PVC insulation. Consequently, it protects against electric shock, moisture, abrasion, and accidental short circuits.
-
Smooth Pull-Through Flexibility: Engineered with stranded copper cores for high flexibility. Because of this durable construction, pulling wire through tight conduits and junction boxes is quick and snag-free.
-
Full Range of Diameters: Available in multiple standard sizes including 1.5 mm, 2 mm, 2.5 mm, 3 mm, 4 mm, 6 mm, 10 mm, and 16 mm. For this reason, you can easily select the exact load capacity required for your circuits.
-

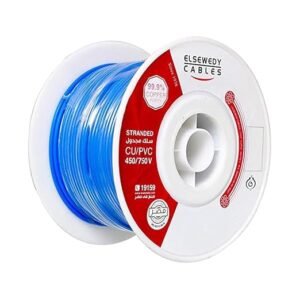

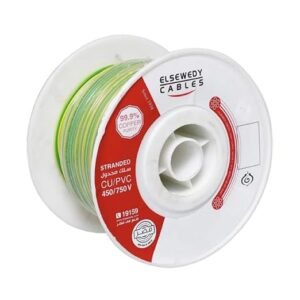

Standard Circuit Color-Coding: Offered in various bright insulation colors (Black, Red, Blue, Yellow, and Green/Yellow Earth). Thus, identifying live, neutral, and ground wires remains safe and organized.
Recommended Applications Across Diameters
-
1.5 mm to 2.5 mm: Ideal for residential lighting circuits, standard wall switches, and household outlet sockets.
-
3 mm to 6 mm: Perfect for heavy-load appliances such as air conditioners, electric water heaters, and modern kitchen ovens.
-
10 mm to 16 mm: Designed for main electrical distribution panels, sub-feed lines, and heavy-duty industrial machinery.
Overall, the Elsewedy stranded copper electrical wire provides proven reliability, certified manufacturing quality, and total peace of mind for every wiring job.
1. Engineering Concept & Primary Function Electrical cable design is a precise engineering discipline dedicated to transmitting power and signals with maximum efficiency and stability across generation, distribution, and consumption points. An effective design relies on a rigorous balance between electrical performance, mechanical endurance, and cost efficiency, ensuring uninterrupted power supply while mitigating power outages and excessive voltage drop under varying operating conditions. 2. Conductor Selection & Electrical Characteristics At the core of the cable lies the conductor material—primarily high-purity copper for its exceptional conductivity and flexibility, or aluminum for its lightweight profile and economic suitability in overhead networks. The engineering process entails precise calculation of the cross-sectional area to carry rated load currents and short-circuit transients, while minimizing electrical resistance and skin effect losses across operating frequencies. 3. Insulation Engineering & Dielectric Integrity Insulation layers serve as the primary line of defense. Advanced polymers are utilized based on application requirements: Polyvinyl Chloride (PVC) for general low-voltage installations, and Cross-Linked Polyethylene (XLPE) for medium- and high-voltage networks due to its superior dielectric strength and high thermal tolerance (up to 90°C). Design considerations strictly mandate uniform insulation thickness to prevent electrical stress concentration and partial discharge. 4. Mechanical Armoring & Environmental Protection To shield cables from physical stress and environmental degradation, protective metallic armoring—comprising steel or aluminum tapes/wires—is incorporated to withstand impact, crushing, and tensile forces during direct burial. Furthermore, specialized outer sheaths are engineered to resist UV exposure, moisture, chemical ingress, and fire spread (such as Low Smoke Zero Halogen – LSZH compounds), safeguarding critical facilities during emergencies. 5. Performance Modeling & International Code Compliance Modern cable development incorporates advanced thermal modeling and simulation to verify heat dissipation across diverse installation environments (in free air, through conduits, or directly underground). The process culminates in strict compliance verification against recognized international standards, including International Electrotechnical Commission (IEC) specifications and national electrical codes, guaranteeing maximum operational safety and a multi-decade service life.
Elsewedy Electric stands as the industry benchmark and the most trusted authority across the Middle East and Africa’s electrical and cabling markets. This premier reputation has been forged over decades of uncompromising commitment to rigorous engineering standards and proven operational reliability across mega infrastructure projects. Core Pillars of Elsewedy Cables Quality: 99.9% High-Purity Electrolytic Copper: Utilizes ultra-pure red electrolytic copper to ensure minimal electrical resistance, significantly reducing power dissipation and eliminating conductor overheating under peak operating loads. Advanced Fire-Retardant Polymer Insulation: Engineered with heavy-duty polymer layers—including PVC, XLPE, and Low Smoke Zero Halogen (LSZH) compounds—offering superior resistance to heat, moisture, and chemicals, alongside self-extinguishing properties to curb flame propagation during emergencies. Precision Engineering & Strict Code Compliance: Fully aligned with standard conductor diameters and uniform insulation thicknesses mandated by EOS (Egyptian Organization for Standardization and Quality) as well as global standards (IEC, BS, ASTM), effectively eliminating partial discharge and premature dielectric breakdown. Mechanical Resilience & Superior Flexibility: Thoughtfully constructed with pliable multi-strand cores for effortless pulling through tight conduits, alongside heavy-duty armored configurations designed to withstand mechanical impact, crushing, and physical stress in direct-burial applications. Extended Service Life & Absolute Safety: Delivers uncompromising protection for human life and infrastructure across residential and industrial sectors, backed by an operational lifespan spanning decades with zero conductivity degradation or need for recurring maintenance.
The quality of electrical cables relies on an integrated system of high-performance engineering materials: Conductors: Primarily utilizing 99.9% pure electrolytic copper to ensure maximum conductivity with minimal electrical resistance, or high-grade aluminum for cost-effective installations and high-voltage transmission networks due to its lightweight properties. Primary Insulation: Incorporating advanced polymers such as Polyvinyl Chloride (PVC) for general-purpose applications, and Cross-Linked Polyethylene (XLPE) to withstand continuous operating temperatures up to 90°C while offering robust resistance against dielectric breakdown. Armoring & External Sheathing: Reinforced with steel or aluminum tapes and wires to absorb heavy mechanical impacts, enclosed in outer protective jackets engineered to resist UV degradation, moisture ingress, and fire spread (such as LSZH compounds)—guaranteeing uncompromised safety and decades of dependable service.
- 1. نمط النقاط لقوائم المنتجات (Bullet Points / Product Specs): 1.5 mm²: Length: 100m
- Outer Diameter: 2.80–3.00 mm
- Conductor Diameter: ~1.45 mm
- Insulation Thickness: 0.70 mm 2 mm² (Commercial): Length: 100m
- Outer Diameter: 3.10–3.25 mm
- Conductor Diameter: ~1.65 mm
- Insulation Thickness: 0.70 mm 2.5 mm²: Length: 100m
- Outer Diameter: 3.40–3.65 mm
- Conductor Diameter: ~1.85 mm
- Insulation Thickness: 0.80 mm 3 mm² (Commercial): Length: 100m
- Outer Diameter: 3.70–3.90 mm
- Conductor Diameter: ~2.05 mm
- Insulation Thickness: 0.80 mm 4 mm²: Length: 100m
- Outer Diameter: 4.00–4.25 mm
- Conductor Diameter: ~2.40 mm
- Insulation Thickness: 0.80 mm 6 mm²: Length: 100m
- Outer Diameter: 4.50–4.80 mm
- Conductor Diameter: ~2.95 mm
- Insulation Thickness: 0.80 mm 10 mm²: Length: 100m
- Outer Diameter: 5.80–6.20 mm
- Conductor Diameter: ~3.85 mm
- Insulation Thickness: 1.00 mm 16 mm²: Length: 100m
- Outer Diameter: 6.80–7.30 mm
- Conductor Diameter: ~4.85 mm
- Insulation Thickness: 1.00 mm 2. نمط بطاقات منفصلة لكل مقاس (لسهولة النسخ لكل منتج على حدة): 1.5 mm² Specification: Cable Size: 1.5 mm² Roll Length: 100 m Overall Outer Diameter: 2.80 – 3.00 mm Conductor Diameter: ~ 1.45 mm Insulation Thickness: 0.70 mm 2 mm² (Commercial) Specification: Cable Size: 2 mm² (Commercial) Roll Length: 100 m Overall Outer Diameter: 3.10 – 3.25 mm Conductor Diameter: ~ 1.65 mm Insulation Thickness: 0.70 mm 2.5 mm² Specification: Cable Size: 2.5 mm² Roll Length: 100 m Overall Outer Diameter: 3.40 – 3.65 mm Conductor Diameter: ~ 1.85 mm Insulation Thickness: 0.80 mm 3 mm² (Commercial) Specification: Cable Size: 3 mm² (Commercial) Roll Length: 100 m Overall Outer Diameter: 3.70 – 3.90 mm Conductor Diameter: ~ 2.05 mm Insulation Thickness: 0.80 mm 4 mm² Specification: Cable Size: 4 mm² Roll Length: 100 m Overall Outer Diameter: 4.00 – 4.25 mm Conductor Diameter: ~ 2.40 mm Insulation Thickness: 0.80 mm 6 mm² Specification: Cable Size: 6 mm² Roll Length: 100 m Overall Outer Diameter: 4.50 – 4.80 mm Conductor Diameter: ~ 2.95 mm Insulation Thickness: 0.80 mm 10 mm² Specification: Cable Size: 10 mm² Roll Length: 100 m Overall Outer Diameter: 5.80 – 6.20 mm Conductor Diameter: ~ 3.85 mm Insulation Thickness: 1.00 mm 16 mm² Specification: Cable Size: 16 mm² Roll Length: 100 m Overall Outer Diameter: 6.80 – 7.30 mm Conductor Diameter: ~ 4.85 mm Insulation Thickness: 1.00 mm
- 1. نمط السطر الواحد لكل مقاس (مثالي للـ Bullet Points ومواصفات المتاجر): 1.5 mm²: Net Copper Weight: ~1.33 kg
- PVC Weight: ~0.65–0.75 kg
- Total Gross Roll Weight: 2.00–2.15 kg 2 mm² (Commercial): Net Copper Weight: ~1.78 kg
- PVC Weight: ~0.75–0.85 kg
- Total Gross Roll Weight: 2.55–2.70 kg 2.5 mm²: Net Copper Weight: ~2.22 kg
- PVC Weight: ~0.90–1.05 kg
- Total Gross Roll Weight: 3.15–3.35 kg 3 mm² (Commercial): Net Copper Weight: ~2.67 kg
- PVC Weight: ~1.05–1.15 kg
- Total Gross Roll Weight: 3.75–3.90 kg 4 mm²: Net Copper Weight: ~3.55 kg
- PVC Weight: ~1.20–1.35 kg
- Total Gross Roll Weight: 4.75–5.00 kg 6 mm²: Net Copper Weight: ~5.33 kg
- PVC Weight: ~1.45–1.65 kg
- Total Gross Roll Weight: 6.80–7.10 kg 10 mm²: Net Copper Weight: ~8.90 kg
- PVC Weight: ~2.20–2.50 kg
- Total Gross Roll Weight: 11.20–11.60 kg 16 mm²: Net Copper Weight: ~14.25 kg
- PVC Weight: ~2.80–3.20 kg
- Total Gross Roll Weight: 17.20–17.70 kg 2. نمط بطاقات منفصلة لكل مقاس (لنسخ كل منتج بمفرده): 1.5 mm² Weight Specifications: Cable Size: 1.5 mm² Net Copper Weight: ~ 1.33 kg / 100m PVC Insulation Weight: ~ 0.65 – 0.75 kg / 100m Total Gross Roll Weight: 2.00 – 2.15 kg 2 mm² (Commercial) Weight Specifications: Cable Size: 2 mm² (Commercial) Net Copper Weight: ~ 1.78 kg / 100m PVC Insulation Weight: ~ 0.75 – 0.85 kg / 100m Total Gross Roll Weight: 2.55 – 2.70 kg 2.5 mm² Weight Specifications: Cable Size: 2.5 mm² Net Copper Weight: ~ 2.22 kg / 100m PVC Insulation Weight: ~ 0.90 – 1.05 kg / 100m Total Gross Roll Weight: 3.15 – 3.35 kg 3 mm² (Commercial) Weight Specifications: Cable Size: 3 mm² (Commercial) Net Copper Weight: ~ 2.67 kg / 100m PVC Insulation Weight: ~ 1.05 – 1.15 kg / 100m Total Gross Roll Weight: 3.75 – 3.90 kg 4 mm² Weight Specifications: Cable Size: 4 mm² Net Copper Weight: ~ 3.55 kg / 100m PVC Insulation Weight: ~ 1.20 – 1.35 kg / 100m Total Gross Roll Weight: 4.75 – 5.00 kg 6 mm² Weight Specifications: Cable Size: 6 mm² Net Copper Weight: ~ 5.33 kg / 100m PVC Insulation Weight: ~ 1.45 – 1.65 kg / 100m Total Gross Roll Weight: 6.80 – 7.10 kg 10 mm² Weight Specifications: Cable Size: 10 mm² Net Copper Weight: ~ 8.90 kg / 100m PVC Insulation Weight: ~ 2.20 – 2.50 kg / 100m Total Gross Roll Weight: 11.20 – 11.60 kg 16 mm² Weight Specifications: Cable Size: 16 mm² Net Copper Weight: ~ 14.25 kg / 100m PVC Insulation Weight: ~ 2.80 – 3.20 kg / 100m Total Gross Roll Weight: 17.20 – 17.70 kg
Frequently Asked Questions? Look here
If you've recently had renovation work done, we can provide specialized cleaning services tailored to post-renovation needs. Our team is equipped to handle the extra dust and debris that comes with renovations, ensuring your space is spotless and ready for use.
Yes, we offer discounts to our loyal customers. If you use our services frequently, you may qualify for special pricing or promotional offers. Please contact our customer service team for more details on available discounts.
Absolutely! We understand that every space has unique needs. You can provide specific instructions and request special services to ensure your cleaning needs are met exactly as you prefer. Our team is committed to accommodating your requirements.
No problem at all! Our cleaning team comes fully equipped with all the necessary supplies, including mops, buckets, and vacuums. You don’t need to provide any cleaning tools or equipment.
Yes, we offer cleaning services for both residential and commercial spaces, including offices. Our team is experienced in handling the specific cleaning needs of commercial environments, ensuring a clean and professional setting for your business.
Additional information
| Diameter/ml | 1.5 ml, 2 ml, 2.5 ml, 3 ml, 4 ml, 6 ml, 10 ml, 16 ml |
|---|
5
Be the first to review “Elsewedy Stranded Copper Electrical Wire…”

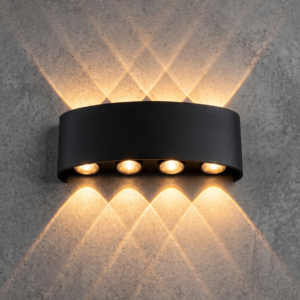

Modern Up and Down LED Wall Light - Multi Beam Sconce
EGP150.00 - EGP300.00
Venus Safety Breaker 30A In Wall
Compare similar items
|
|
|
|
|
|
|
Find and select products to see the differences and similarities between them |
||||
| Customer Rating |
|
|
|
|
| Price |
EGP1700.00 - EGP16900.00 |
|
EGP150.00 - EGP300.00 |
EGP120.00-20% |
| Item Dimensions |
N/A
|
13 × 7 × 4 cm
|
N/A
|
7 × 7 × 5 cm
|
| Special Features |
Buy genuine Elsewedy stranded copper electrical wire. Available in 1.5mm to 16mm diameters and multiple colors. 99.9% pure copper for peak safety and power. |
Secure your heavy home appliances today with the venus safety breaker 30a in wall. Shop online for instant overload protection and built-in LED monitoring. |
Transform your walls with the modern up and down led wall light. Available in 1, 2, 3, and 4-lamp models. Features warm ambient glow and waterproof aluminum.
|

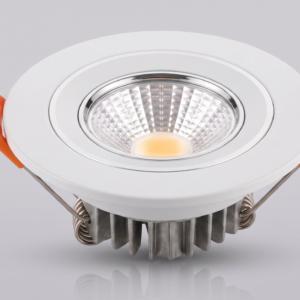

Illuminate your interior with the COB LED recessed spotlight warm white. Enjoy glare-free 3000K lighting, a durable aluminum heat sink, and 50,000-hour life. |
| Weight |
N/A
|
0.12
|
N/A
|
0.12
|
| Availability |
In stock |
3 in stock |
In stock |
In stock |
Similar items
1
Architectural 8-Beam Visual Effect: Projects upward and downward warm light rays that intersect across wall textures, delivering an eye-catching, glare-free ambient glow.
Premium Die-Cast Aluminum Body: Crafted from heavy-duty aluminum with an electrostatic matte black coating to resist rust, scratches, and extreme weather.
Energy-Efficient Integrated COB LEDs: Powered by high-lumen, low-wattage LED chips engineered for up to 50,000 hours of continuous, maintenance-free performance.
Sealed Convex Glass Optics: Features high-transmittance, tempered glass lenses that focus crisp light beams while blocking moisture, dust, and outdoor elements.
Versatile Indoor & Outdoor Durability: Built with a fully weather-resistant structure, making it ideal for exterior villa facades, boundary walls, corridors, and living room accent walls.
Quick & Seamless Wall Mounting: Installs easily onto standard 220–240V AC power lines using the included flush-fit backplate and mounting hardware.
- Brand : Sony Corporation Ltd
- Resolution : 3840×2160
- Release years : Jan 2022
- Motherboard : Samsung ATX, ITX, microATX, Mini-ITX
SALE
1

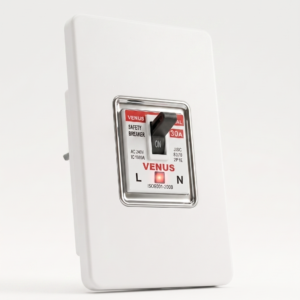

Superior endurance: Designed to operate efficiently and safely with a current of up to 30 amps (240 volts), making it ideal for protecting heavy household appliances.
